Meniscus Positive
(CX-CV) Lenses
Meniscus Positive
(CX-CV) Lenses Meniscus Positive
(CX-CV) Lenses  working schema

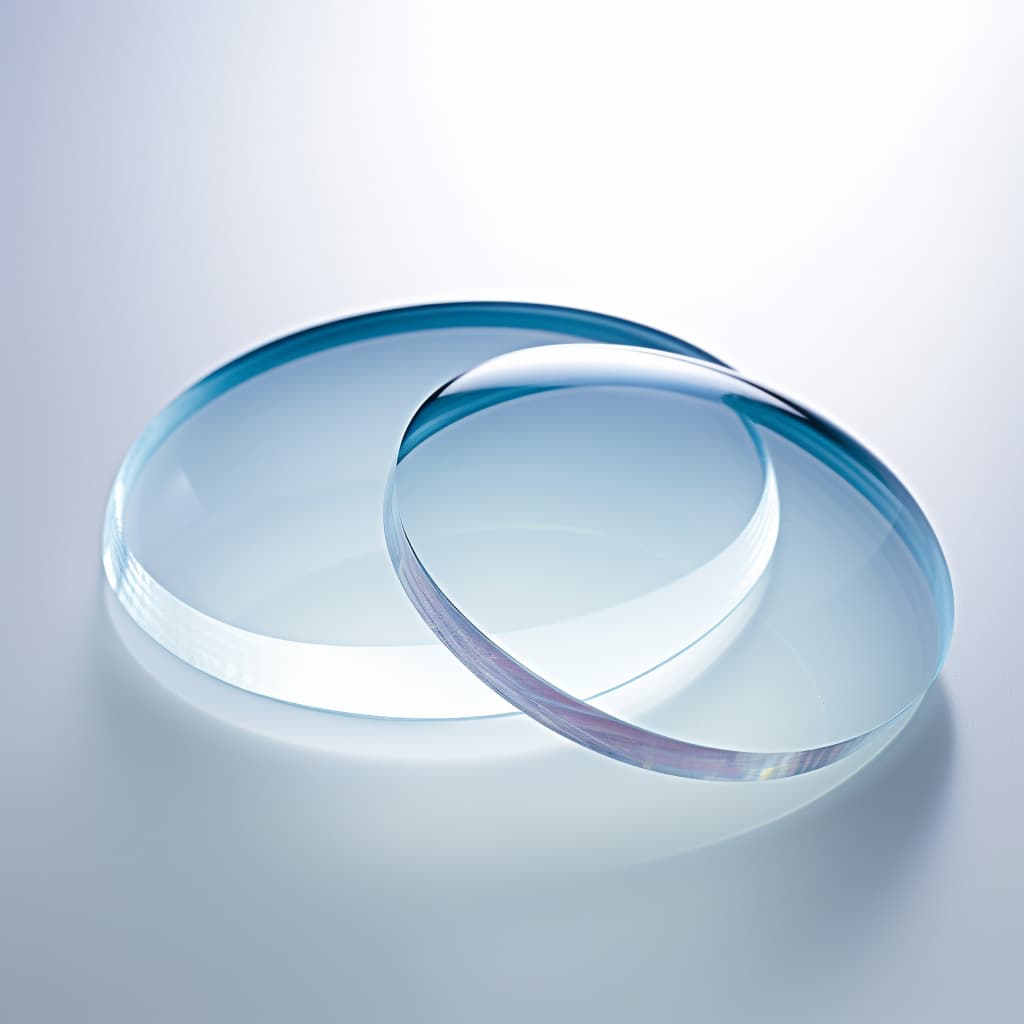

Meniscus Positive Lenses (Convex-Concave CXCV Lens)

Positive meniscus lens is thicker at the center than at the edges. These lenses combine both convex and concave surfaces resulting in positive focal length (converges the light (laser) beam).

SUBSTRATE
COATING
Coating
QUALITY

Click to insert the symbol

FROM 35€*

Estimated Shipping Date: November 23, 2024 - December 7, 2024

* - Shopping cart pricing is based on the most recent pricing and it is NOT ORDERING, but requesting an official quotation which should typically reach You within 1-2 business days.

Positive Meniscus lenses: description and key functions

Positive meniscus lens has convex surface (outwards) and concave surface (curving inwards). The radius of curvature (ROC) of convex side is greater than ROC of concave surface. This makes the center thicker than the edges and also results in positive focal length. This specific shape is designed to minimize spherical aberration, a common issue of plano-convex spherical lenses.

Positive Meniscus lenses for laser light converging, focal length adjustement, image quality improvement and other applications

Alien Photonics positive meniscus lenses are integral components in the design of optical systems, offering unique advantages in light manipulation, aberration correction, and enhancing image quality. Their application is widespread across various fields, including photography, microscopy, ophthalmology, and in the manufacturing of optical instruments.

Positive Meniscus Lenses to enhance image quality

Positive meniscus lenses, in combination with other lenses in optical systems can enhance the overall image quality. They help in achieving sharper images with greater clarity by focusing light more precisely.

Positive Meniscus Lens to converge light rays

Due to its shape, a positive meniscus lens converges light rays. This is useful in applications where light needs to be focused, such as in imaging systems, laser beam focusing, and in optical instruments.

Optical performance optimization with Positive Meniscus Lens

Alien Photonics positive meniscus lenses can be tailored for specific applications, taking into account factors like focal length and field of view. Their versatility allows for improved performance in a variety of optical devices, including cameras, binoculars, microscopes, and projectors.

Adjusting effective focal length using Positing Meniscus Lens

Positive meniscus lenses are used to adjust the effective focal length of lens systems without significantly adding to the system's size or weight. This is particularly useful in compact optical devices where space is limited.

Positive Meniscus Lens to correct spherical aberrations

Positive meniscus lens can reduce spherical aberrations in optical systems. By carefully choosing and adjusting the curvatures of the convex and concave surfaces, these Alien Photonics lens can more effectively focus light rays to a single point, improving image quality.
