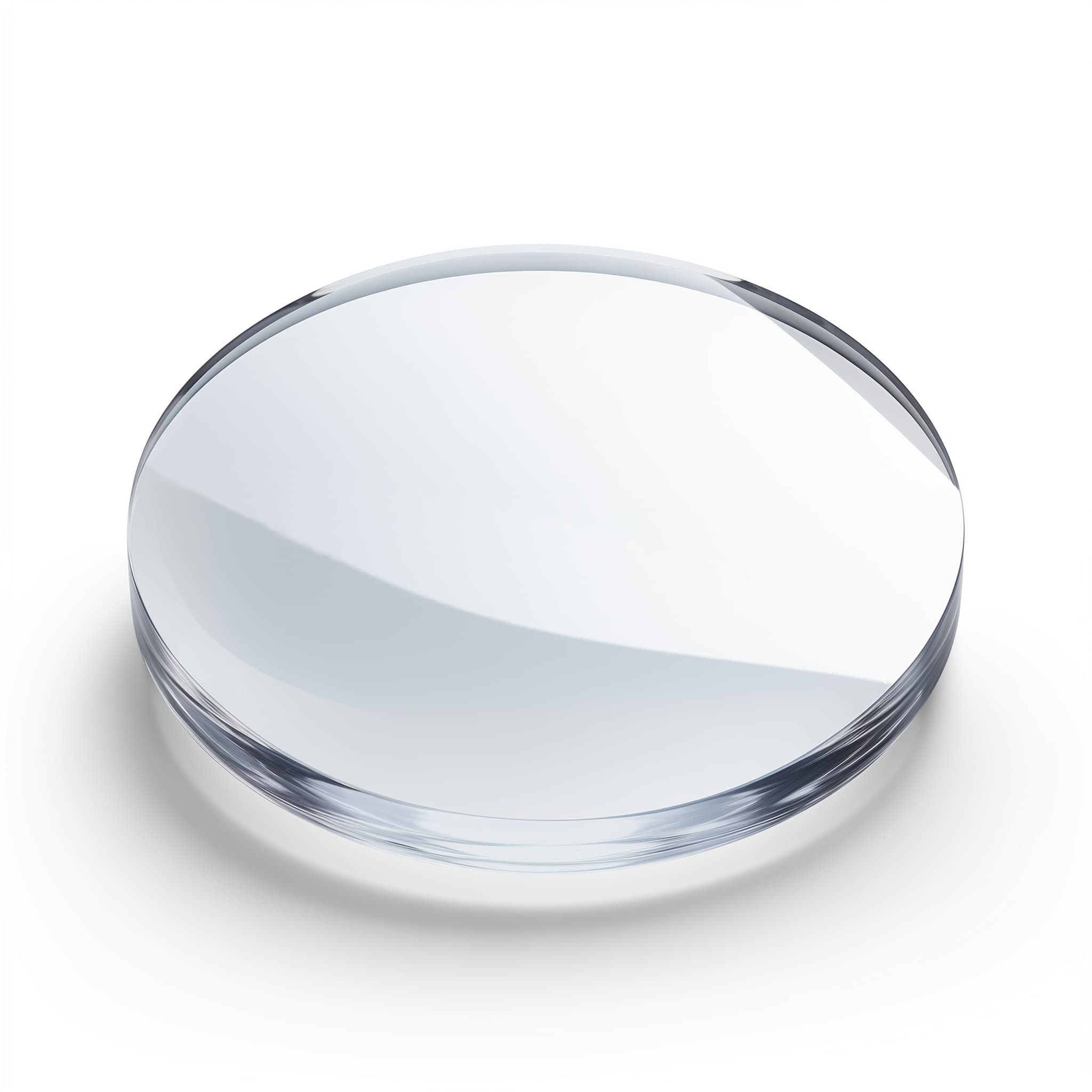

Meniscus Negative Lenses (Concave-Convex CV-CX Lens)
Negative meniscus lens is thicker at the edges than at the center. These lenses combine both concave and convex surfaces with overall negative focal length (light (laser) diverges).
Estimated Shipping Date: November 23, 2024 - December 7, 2024
* - Shopping cart pricing is based on the most recent pricing and it is NOT ORDERING, but requesting an official quotation which should typically reach You within 1-2 business days.
- Description
- Applications
- Aberrations
Negative Meniscus Lenses: purpose and key function
Alien Photonics negative meniscus lens has one surface that is concave (curving inwards) and another that is convex (curving outwards). This makes them thinner at the center and thicker at the edges, while also resulting in negative focal length. This specific shape is used to diverge light (e.g. laser beam).
Negative Meniscus Lenses for laser beam diverging, image quality improvement, focal length adjustment and other applications
Negative meniscus lenses play a crucial role in diverse optical applications where their unique ability to diverge light, correct specific aberrations, and improve system performance is required. They are very helpful in designing optical systems that demand precise control over light propagation, ensuring optimal performance across a broad range of technologies and devices.
Negative Meniscus Lens for diverging light (laser) rays
The primary optical function of a negative meniscus lens is to diverge light rays that pass through it. This is useful in applications that require the spreading of light, such as in certain types of optical testing equipment, beam expanders, or in systems designed to reduce the intensity of a focused laser beam.
Improving image quality with Negative Meniscus Lenses
When used in combination with other optical elements, negative meniscus lenses can help to improve the overall image quality. That is done by balancing out converging effects of other lenses, particularly in complex lens systems where control over the light path is crucial.
Adjusting focal length using Negative Meniscus Lenses
Alien Photonics negative meniscus lenses are also used to modify the effective focal length of whole optical system. It is done in such a way that increases the system's field of view without significantly altering the size or weight of the assembly.
Negative Meniscus Lens for reducing spherical aberrations
Similar to Alien Photonics positive meniscus lens, the negative meniscus lens is used to correct spherical aberrations in optical systems. Negative meniscus lens are particularly effective in configurations that require the spreading out or divergence of light rays, improving the quality of the image or beam profile.
